MOLDING CLIPS

Molding Clip 1″ #103S

ALUMINUM MOLDING

106 Headrod Molding

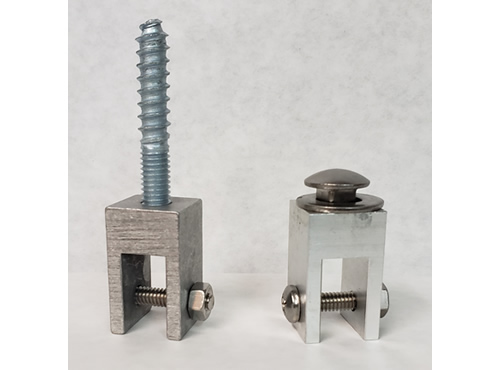

High quality aluminum extrusion to be used in conjunction with 101S Jaw ends and 103S Molding Clips.

Sold in 20ft lengths.

555 Fabric Track (90 degree)

Flexible aluminum extrusion that allows fabric to slide easily into place for signs and commercial awnings.

20ft lengths

PIPE CLAMPS

L to R

3402S 3/4″

102S 1″

Stamped steel design for 3/4″ and 1″ pipe. Dacromet finish with stainless steel carriage bolt and nut.

HEADROD CLAMPS

Zinc Die Cast base and tab w Stainless Hardware

L to R

104S Single Hole 1/2″
204S Double Hole w Hooks
304S Roller Curtains
404S Stone and Brick

ADJUSTABLE FRONT BAR FITTINGS

Stamped steel clamp with dacromet finish. Attached to a zinc die-cast collar for 1˝ and 3/4″ front bar and rafter. Stainless Hardware.

L to R

105S  1″X1″

105SSP 1″X1″  ALL STAINLESS STEEL PLATES

345S 3/4″X 3/4″

FRONT BAR CLAMP

117S Front Bar Clamp 1″x1″

Malleable iron clamp with dacromet finish, features one piece claw design for easy assembly of rafters to the front bar. Stainless steel screws.

SLIP FIT TEES

Malleable iron tee with Dacromet finish, can be used to join uprights or rafters to the front bar. Stainless steel screws.

L to R

118S Slip Fit Tee 1″

11418S Slip Fit Tee 1 1/4″

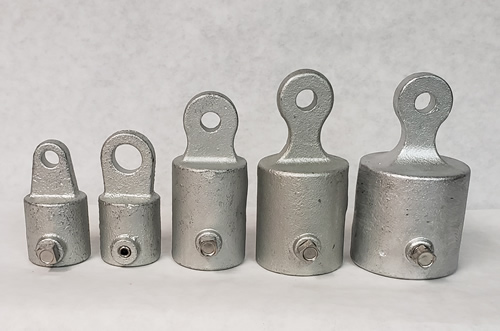

SLIT FIT EYE ENDS

Slip fit design for various pipe diameters
Made of malleable iron with dacromet finish.

L to R

1408S 1/4″

1208S 1/2″

1208SLE 1/2″ (large eye)

348S 3/4″

108S 1″

11408S 1 1/4″

THREADED EYE ENDS

Made of malleable iron with Dacromet finish

L to R

1208TLE 1/2″ Large Eye

1208T 1/2″

3408T 3/4″

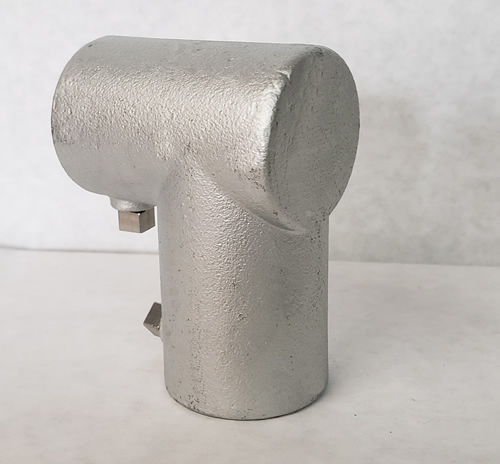

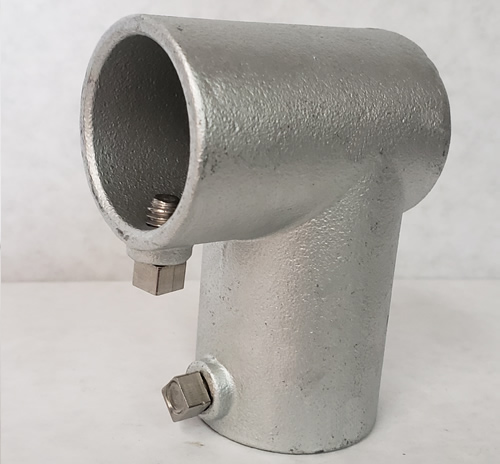

CORNER ELBOW

112S Corner Elbow 1″

Slip Fit design for 1˝ pipe made of malleable iron with a Dacromet finish. The corner elbow joins the end rafter to the front bar, producing a perfect corner.

1212S Corner Elbow 1/2 inch

THREADED ELBOW

Threaded elbow

L to R
1212T 1/2″

123412T 1/2″ to 3/4″

3412T 3/4″

Rod and Rafter Holder

109S Roof or fascia mounted fitting has a durable Dacromet finish and stainless steel wing nut and bolt. Use with 3/8″ or 1/2″ headrod.

Tie Down Clamps

Malleable iron clamps with Dacromet finish prevents water from pooling behind the front bar. Can be used on rafters instead of welding trusses. Stainless Carriage bolt and nut.

L to R

110S Tie Down Clamp

111S Tie Down Clamp Long (4 1/2″)

Hinges

L to R

114S Camel Back

11/16″ zinc die-cast hinge for window awnings. The rustproof stainless steel machine screw can can accommodate a grommet eliminating the need to stock two hinges.

214S O.B. Hinge

Large Zinc die cast hinge for stationary or window awnings. Stainless machine screw and nut.

314S Side Nut Hinge

Use for side mounting on columns and window frames.

Slip Fit Ridge Fitting

115S Ridge Fitting 1”

Ridge or corner angles from 80 degrees!  Use these to create more height with a roof mount patio awning.

116S Ridge Fitting End

Use with 115S to make a flush ridge end.

Z Bracket

10 Gauge steel Zinc plated

L to R

401Z  1 3/4″ x 1 1/2″

402Z   3 1/4″ x 1 1/2″

403Z   4″ x 1 1/2″

Pulleys

High quality Pulleys. Zinc die cast and nickel plated.

L to R

34701P 3/4″ single

34702P 3/4″ double

1701P 1″ single

1702P 1″ double

Roller Curtain Ring and Holder

L to R

412RL Roller Curtain Ring

Durable highly polished plastic that will never break

413RL Ring Holder

Stamped Steel and zinc plated

Cleat

Cleat 6″ Zinc Die Cast

Nut End

Threaded stud, with a Stainless Steel nut. Made of malleable iron with dacromet finish. Can be used with a side mount plate and various length threaded extenders to accommodate custom designs for square or round columns.

L to R

601NE 3/8″ Nut End

12601NE 1/2″ Nut End

Open Side mount plates and eye stub

L to R

602W (wood) Side Mounting
Plate has a threaded 3/8” opening for threaded pipe extension or Eye Stub

603C
Side Mount Plate (Cement or Brick)
Cement or Brick. Perfect for support of uprights. Made of malleable iron with dacromet finish.

604TES Threaded Eye Stub 3/8″
Eye stub can be used with side mount plates. Made of malleable iron with dacromet finish.

POST SOCKETS

Slip Fit design with standard 2 hole base. All are made of malleable iron with a dacromet coating.

L to R

107S 1″

Heavy duty Post Sockets with 4” base plate for 1”  and 1 ¼” pipe. 4 pre-drilled holes to drill through or tek screw upright.

107SHD 1″

107SHDOS 1″ offset

11407SHDOS 1 1/4″ offset

11407SHD 1 1/4″

207SQ Square Post Socket 2″ or 3″

Mounted offset on a 4″x6″ base plate. Use a 2″ square tube inside or a 3″ square tube outside. Fitting has 4 predrilled holes on the base plate and upright.

AWNING CORD

L to R

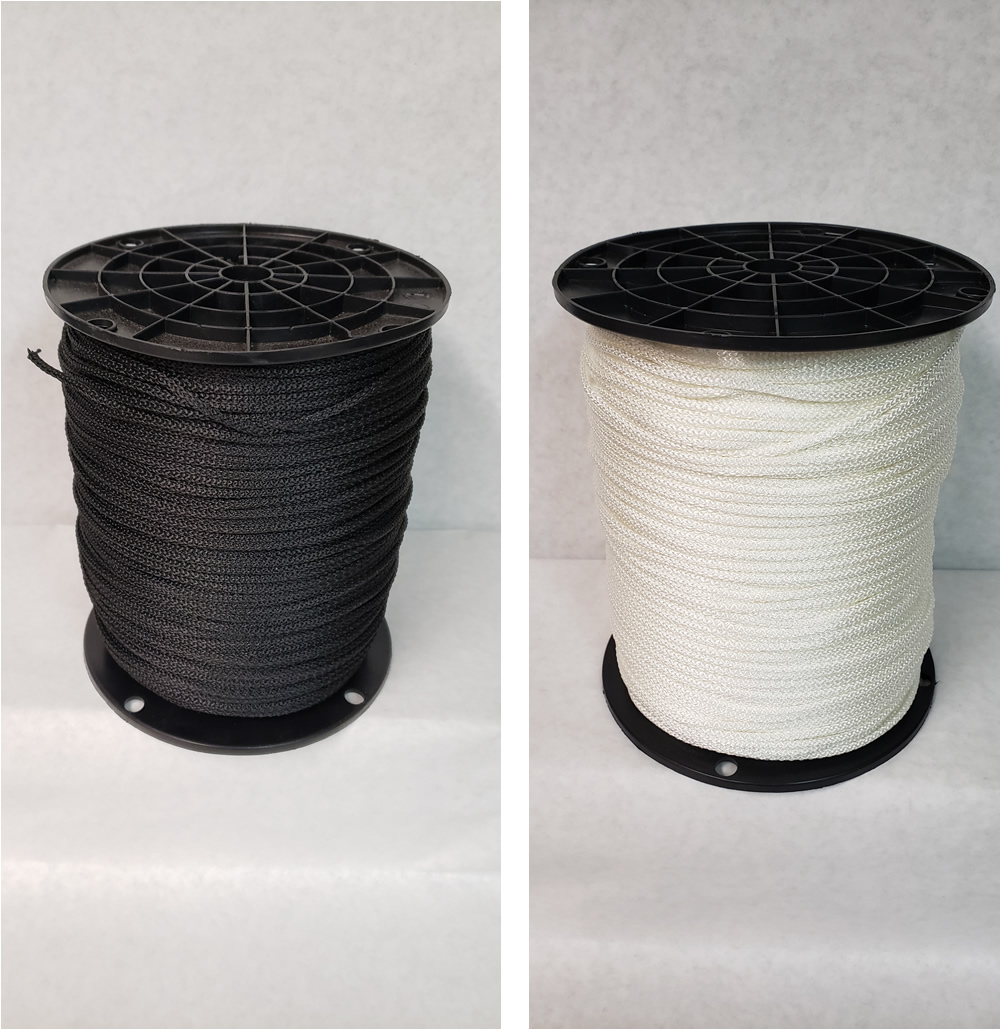

502PB-3000 Locktite #4 Black 3000ft spool
502P Locktite #4 Black 1000ft spools 12 per ctn

502P–3000 Locktite #4 White 3000ft spool
502P Locktite #4 White 1000ft spool  12 spools per ctn

506P Locktite #6 3/16″ 1000 ft spools 4 per Ctn

501C #4 Cotton Cord 3000 ft (Durable cotton cord on a Wood spool)
